SDVH Screw Vacuum Pump
The SDVH Screw Vacuum Pump is designed for continuous 24/7 operation in pharmaceutical, chemical, and electronics industries. With optimized screw rotor technology and modular construction, it reduces energy consumption, minimizes maintenance, and ensures long-term reliability in complex processes.
100% Oil-Free Operation
Eliminates contamination risks and ensures pure, clean vacuum for sensitive pharmaceutical and electronics processes
Low Maintenance Design
Extended service intervals and reduced downtime with robust engineering and modular construction for reliable operation
Multi-Industry Adaptability
Specifically optimized for pharmaceutical, chemical, and electronics industries with customizable configurations
Corrosion Resistant
Advanced alloy castings and anti-corrosive materials customized according to specific process characteristics and chemical compatibility
Explosion-Proof Design
Customizable safety configurations according to explosion-proof risk requirements of hazardous process gases and environments
Ready to Start?
Get technical consultation for your specific vacuum pump requirements and custom solutions.
Overcoming Traditional Vacuum Pump Limitations
Reducing operational costs, improving production efficiency, and adapting to demanding process requirements. Ultimate vacuum capability down to 1Pa.
High Energy Consumption & Environmental Pollution
Traditional vacuum systems waste power at common duty points, inflating total cost of ownership while contributing to environmental pollution through excessive energy usage.
Superior Energy Efficiency & Eco-Friendly
Our optimized approach delivers superior energy efficiency and environmental benefits:
- Optimized screw profile geometry improves volumetric efficiency in typical high-vacuum ranges
- Application-tuned controls (VFD-ready) to match load fluctuations and reduce off-design losses
- Dry-process–friendly configuration options to minimize parasitic losses from working fluids
Frequent Maintenance & Downtime
Complex internals and wear-prone parts force frequent stops, hurting OEE (Overall Equipment Effectiveness) and increasing operational costs.
Extended Maintenance Intervals
Engineered for reliability and easy maintenance:
- Non-contacting screw profiles reduce internal wear under clean-process conditions
- Special alloy materials effectively extend overall equipment lifespan
- Modular layout provides fast access to serviceable components, shortening planned downtime
- Condition-monitoring interface (sensors-ready) helps move from reactive to planned maintenance
Complex Process Requirements
Processes involve condensables, solvents, or variable loads that standard pumps struggle to handle effectively, limiting operational flexibility.
Configurable for Your Application
Customizable to meet specific process demands:
- Process-specific materials & sealing options to improve compatibility with challenging gases/vapors
- Thermal management & gas handling options (purge/inerting readiness) to mitigate condensation risk upstream
- System-level integration capability for central vacuum or multi-pump cascades
Manufactured with Mazak/Matsuura precision equipment
Backed by 25 patents in screw technology and continuous R&D investment
SDHV vs Traditional Solutions
See how SDHV Screw technology compares to traditional vacuum solutions across key performance metrics
| Criterion | SDHV Screw | Liquid Ring | Roots (Booster System) |
|---|---|---|---|
| Specific Energy @ Declared Duty Point | Lower at matched duty point | Higher due to working fluid affected by temperature rise | Depends on backing pump sizing |
| Utilities Consumption | 0 L/h (if dry configuration) | Continuous seal water required | 0 L/h (water) |
| Maintenance Interval | Extended (clean-process, fewer wear parts) | Periodic (scaling/cavitation risks) | Periodic (gears/seals; plus backing pump) |
| Process Compatibility | Configurable materials/seals | Good with wet gases; risk of cross-contamination | Limited with condensables without traps |
| System Complexity | Single primary unit | Internal liquid circulation in pump body | Booster + backing pump |
Specific Energy @ Declared Duty Point
Utilities Consumption
Maintenance Interval
Process Compatibility
System Complexity
Test Conditions & Methodology
Test Gas: Dry air (20 °C, 1 atm at inlet)
Configuration Notes: Liquid Ring includes seal-water loop at rated conditions; Roots considered as booster + backing pump sized for the same duty point; SDHV standard configuration without ancillary process traps unless otherwise stated.
Maintenance Interval: Estimated under clean-process assumptions; actual interval depends on gas load, particulates, condensables, and duty cycle.
Core Technical Advantages
Advanced engineering solutions backed by 25 patents and precision manufacturing technologies
Advanced Screw Profile Design
Industry-leading Quimby screw profile technology with optimized multi-stage compression geometry for superior performance and efficiency.
-

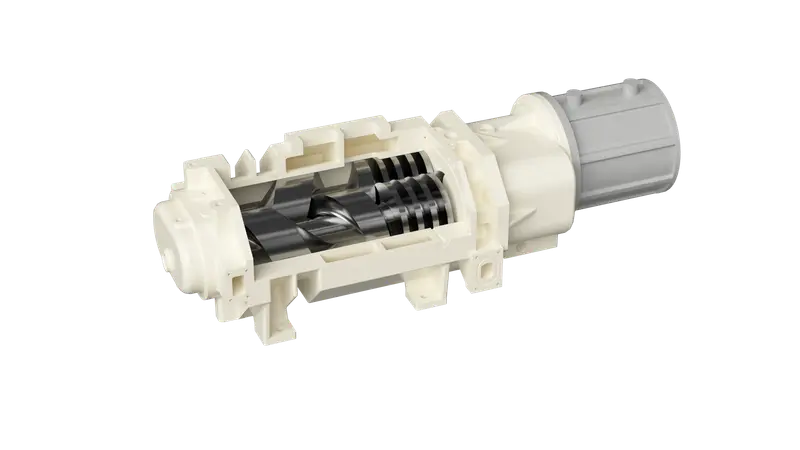

Optimized Quimby Screw Profile - Two self-meshing curves with smooth transitions, achieving 85% volumetric efficiency and ultimate vacuum below 1Pa
-
Three-Stage Design - Intake stage without internal compression, reduced backflow, stable thermodynamic performance
-
Variable Pitch Technology - Patented multi-stage compression screw profile, 16.6%-23.8% higher efficiency than equal pitch designs
Precision Manufacturing & Assembly
Expert assembly processes with optimal clearance control, ensuring consistent performance and reliability across all operating conditions.
-
Optimal Clearance Control - Uniform and precise clearances essential for creating top-tier vacuum pump performance
-
Advanced Assembly Techniques - Proven assembly methods ensuring precision accuracy and consistent quality control
-
Expert Supervision - 15+ years experienced specialists overseeing all screw vacuum pump assembly processes
High-Precision Machining Excellence

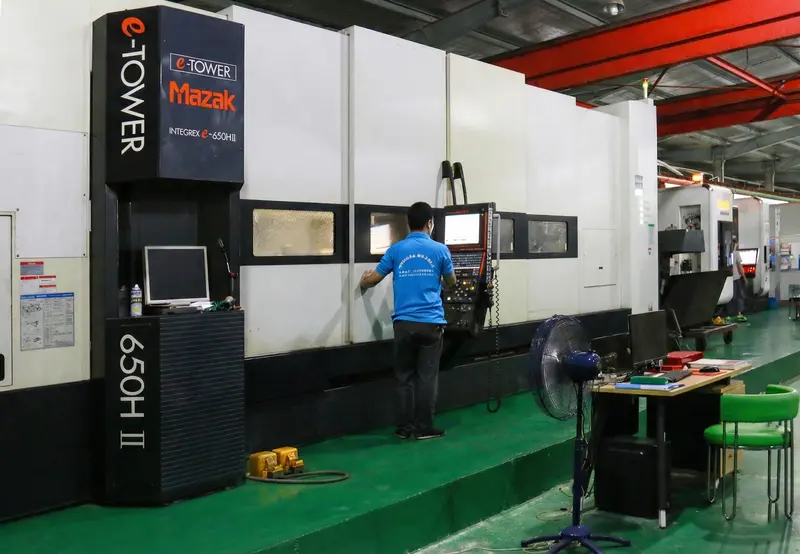

World-class manufacturing precision using advanced CNC technology for custom screw profile rotors with industry-leading accuracy standards.
Advanced Corrosion Protection
Premium imported materials with specialized anti-corrosive coatings designed for challenging chemical and pharmaceutical applications.
-
Selective Coating Materials - Premium imported materials optimized for different working media environments
-
Superior Adhesion - Excellent bonding between coating and rotor materials, resistant to peeling or deterioration
-
Chemical Compatibility - Designed for condensable, toxic, and corrosive gases in pharmaceutical and chemical industries
Multi-Stage Sealing Technology
Comprehensive sealing solution with multiple protection layers ensuring reliable operation under various process conditions.
-
Centrifugal Shaft Seal - Utilizes centrifugal force to eliminate solid and liquid contaminants
-
Nitrogen Pressurization - Micro-positive pressure barrier protection system
-
Piston Ring & Lip Seals - Pressure relief guidance with dry stainless steel PTFE shaft seals and ceramic sleeves
Premium International Components
World-class components from leading global manufacturers ensuring maximum reliability and extended service life.
-
Premium Bearings - NSK, FAG, and SKF imported bearings for superior performance and longevity
-
High-End Sealing - SKF and Saint-Gobain custom-designed sealing elements for demanding applications
-
German Engineering - German KW technology cast housings machined at Japanese precision centers, with KTR couplings
-
Japanese Coatings & Alloys - Imported Japanese coatings and various specialized alloy materials
Intelligent Control System
Advanced centralized control system with mobile app integration, comprehensive monitoring, and predictive maintenance capabilities.
-
Mobile App Control - Real-time operation control via smartphone application for remote monitoring and management
-
Comprehensive Monitoring - Real-time display of pressure, temperature, operating time, and status with fault diagnosis
-
Data Logging & Analysis - Touchscreen operation with massive memory storing thousands of operational and fault records
-
Communication Integration - RS485 interface and Ethernet support for seamless system integration and unmanned operation
Versatile Solutions Across Industries
SDRV Screw Vacuum Pumps deliver reliable performance in demanding industrial applications, from pharmaceutical manufacturing to electronics production
Pharmaceutical
-
Vacuum Drying → API crystallization and solvent removal
-
Distillation → Pharmaceutical grade purification processes
-
Sterilization → Steam sterilization and degassing systems

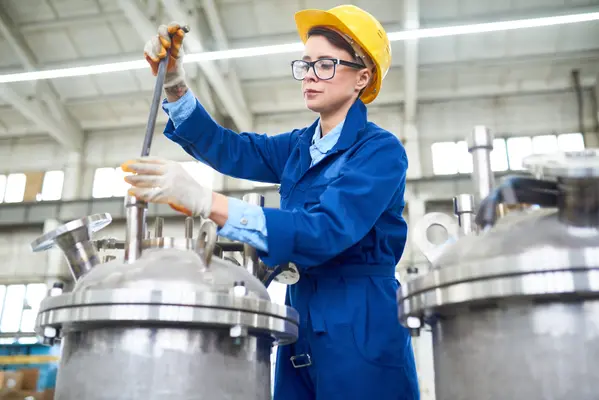

Chemical Processing
-
Solvent Recovery → Efficient organic solvent reclamation
-
Vacuum Distillation → High-purity chemical separation
-
Degassing → Removal of dissolved gases from liquids

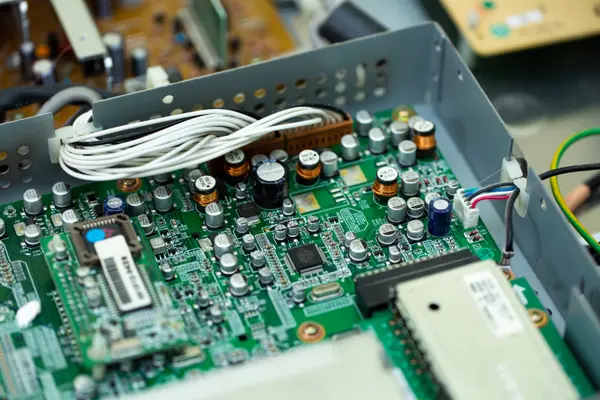

Electronics
-
Photovoltaic → Silicon ingot pulling, component packaging, electromagnetic sheet printing
-
Lithium Battery Industry → Drying, injection, packaging
General Manufacturing
-
Heat Treatment → Vacuum quenching
-
Food Preservation → Freeze drying
-
Vacuum Suction → CNC, woodworking engraving, printing
Why Choose SDHV Over Alternatives?
Comprehensive comparison demonstrating SDHV's superior performance, reliability, and cost-effectiveness across different vacuum technologies and competing brands
| Comparison Factor |
SDHV Screw
Vacuum Pump
|
Dry Screw
Vacuum Pump
|
Liquid Ring
Vacuum Pump
|
Reciprocating
Vacuum Pump
|
Water/Steam
Ejector
|
Rotary Vane
Pump
|
|---|---|---|---|---|---|---|
| Ultimate Vacuum | 1Pa | 5Pa | 3000-6000Pa | 2000Pa | 3000-10000Pa | 1.33Pa |
| Working Medium | Oil-Free | Oil-Free | Water Required | Oil-Free/Oil | Water/Steam | Oil Required |
| Waste Treatment Cost | None | None | High | Minimal | High | Minimal |
| Gas Recovery | 98% Direct | 98% Direct | No Direct Recovery | Low Efficiency | No Direct Recovery | No Recovery |
| Clean Environment | Suitable | Suitable | Suitable | Not Suitable | Suitable | Not Suitable |
| High Liquid Load | Suitable | Suitable | Suitable | Not Suitable | Suitable | Not Suitable |
| Maintenance Cost | Low | Low | High | High | Low | High |
| Energy Efficiency | Excellent | Good | Moderate | Low | Low | Moderate |
SDHV Screw Vacuum Pump
Dry Screw Vacuum Pump
Liquid Ring Vacuum Pump
Reciprocating Vacuum Pump
Water/Steam Ejector
Rotary Vane Pump
Performance vs. International Brands
Direct performance comparison with leading international screw vacuum pump manufacturers including Pfeiffer and Edwards
|
International Brands
|
SDHV Series
|
||||||
|---|---|---|---|---|---|---|---|
| Brand / Model |
Pumping Speed
(L/min)
|
Ultimate Pressure
(Pa)
|
Motor Power
(kW)
|
Brand / Model |
Pumping Speed
(L/min)
|
Ultimate Pressure
(Pa)
|
Motor Power
(kW)
|
| Pfeiffer DS80 | 1,400 | 1 | 3.0 | SDHVV120 | 2,100 | 1 | 2.2 |
| Pfeiffer DS160 | 3,167 | 1 | 7.6 | SDHVV120 | 2,520 | 1 | 2.2 |
| Pfeiffer NX950 | 15,800 | 5 | 18.5 | SDHVV950 | 15,800 | 1 | 18.5 |
| Pfeiffer DS700 | 10,900 | 0.1 | 6.2 | KZT500 | 10,200 | 0.1 | 5.2 |
| Pfeiffer DS1000 | 15,600 | 0.1 | 7.0 | KZT750 | 15,120 | 0.1 | 5.2 |
| Edwards NX650 | 68,333 | 0.1 | 27.5 | SDHVV630 | 69,000 | 0.1 | 26 |
Engineering Excellence & Innovation
Backed by decades of expertise, cutting-edge technology, and unwavering commitment to quality
National Patents
Continuous R&D investment driving innovation in screw vacuum technology
Precision Manufacturing
Mazak & Matsuura equipment ensuring world-class machining accuracy
9001:2015 Certified
Rigorous quality management system with comprehensive testing protocols
Global Service
Comprehensive support network with local technical expertise worldwide
Complete Technical Datasheet
Comprehensive technical specifications for all SDHV Screw Vacuum Pump series, including standard and energy-efficient models with detailed performance parameters
| Parameter | Unit | SDHV2.2 | SDHV3.7 | SDHV5.5 | SDHV7.5 | SDHV11 | SDHV15 | SDHV18.5 | SDHV22 | SDHV30 | SDHV37 | SDHV55 | SDHV75 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pumping Speed | m³/Hr | 126 | 180 | 290 | 396 | 540 | 792 | 960 | 1080 | 1620 | 1860 | 2880 | 4080 |
| m³/min | 2.1 | 3 | 4.8 | 6.6 | 9 | 13.2 | 16 | 18 | 27 | 31 | 48 | 68 | |
| L/S | 36 | 50 | 80 | 110 | 150 | 220 | 267 | 300 | 450 | 517 | 800 | 1133 | |
| Ultimate Pressure | mbar | 0.8 × 10⁻² | 1.0 × 10⁻² | 1.0 × 10⁻¹ | |||||||||
| Torr | 6.0 × 10⁻³ | 7.5 × 10⁻³ | 7.5 × 10⁻² | ||||||||||
| Pa | 0.8 | 1.0 | 10 | ||||||||||
| Motor Power | kW | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 |
| Rotation Speed | RPM | 2900 | |||||||||||
| Inlet Diameter | mm | 40 | 50 | 65 | 65 | 80 | 100 | 100 | 100 | 150 | 150 | 200 | 200 |
| Outlet Diameter | mm | 40 | 40 | 50 | 50 | 65 | 80 | 80 | 80 | 100 | 100 | 150 | 150 |
| Noise Level | dB(A) | 72 | 72 | 73 | 75 | 75 | 75 | 78 | 78 | 85 | 85 | 85 | 85 |
